Thread: Making a Rolling block rifle on my lathe.

  1. #1
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    819

    Making a Rolling block rifle on my lathe.

    Hi guys, I`ve had this large round lump of 1045 steel and keep stubbing my toes on the dam thing, I`ve been chewing at it like a beaver on and off. As I have the plans for a roller I thought bugger , its going to be the flaming roller action bit, the problem is it`s round and I need too make it square. Have to machine off heaps to get it the shape I want so I can start making the action, well I've plenty of time and gives me something to do. The start.

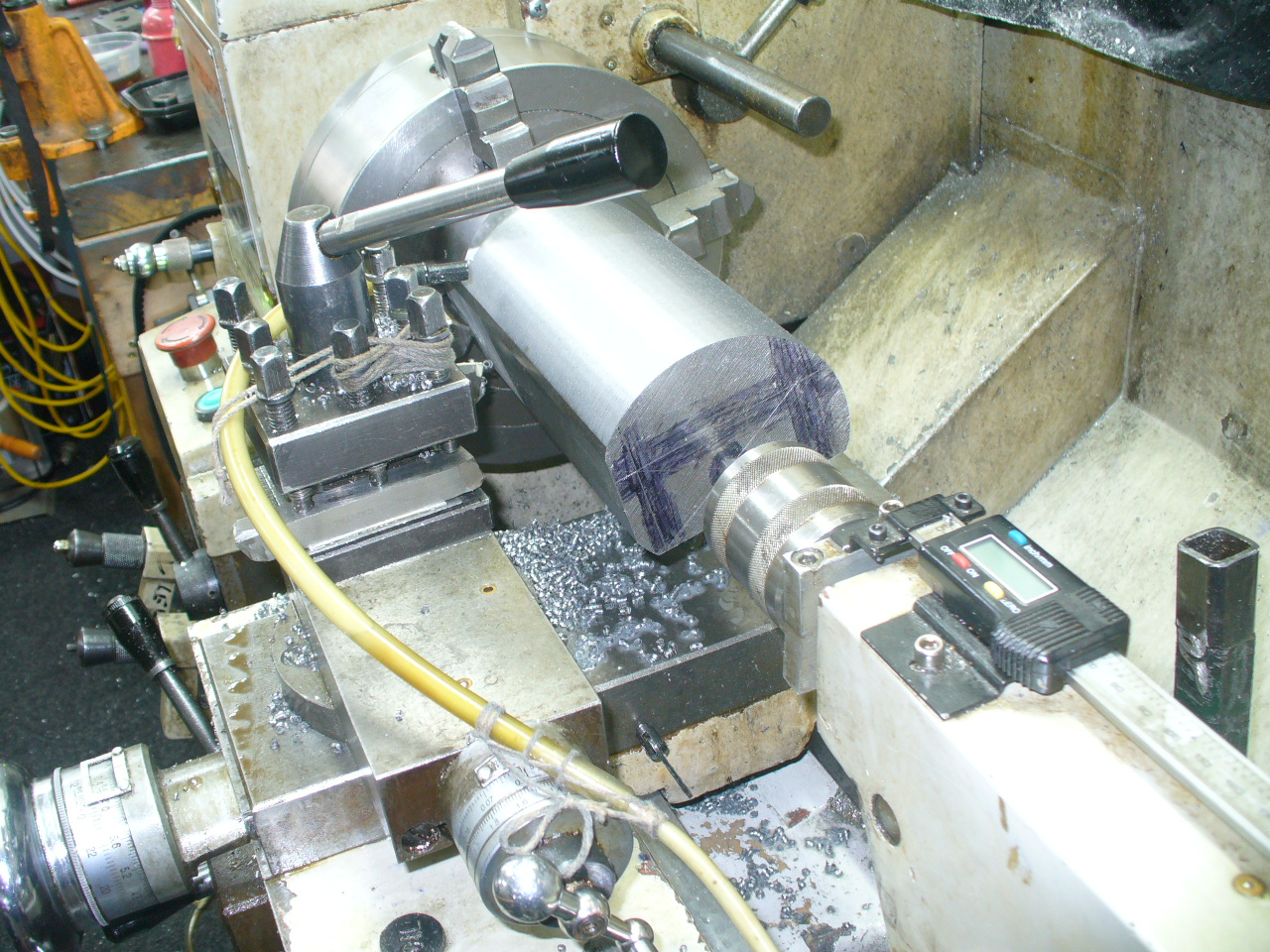

    Name:  P1030336.JPG
Views: 843
Size:  596.4 KB, It will be square one day.
    Scouser, grunzter, res and 8 others like this.

  2. #2
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    2,088
    There is no dignity in haste !
    Moa Hunter and bing like this.

  3. #3
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    2,088
    You obviously need a metal shaper for that job

  4. #4
    Banned
    Join Date
    Mar 2016
    Location
    auckland
    Posts
    2,453
    Supercool project. Do you have blueprint plans for this?
    Decent lathe you have. Looks like you need a mate with a milling machine

  5. #5
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    819
    I know want I need but will have wait till I win lotto, and need a bigger shed, in the mean time I`m making heaps of swarf and yes have 14 sheets of plans for this Remington rolling block rifle with grove improvements. That means lever breech opening, set triggers, pistol grip, I sold a guy a 45-70 barrel who had made the action and he said do you want the plans, I thought rolled up printed plans so yer , sent me a P D F file with all the plans. So had them all printed out now have something to do. , as well as making barrels, it`s all go.

  6. #6
    Member Danny's Avatar
    Join Date
    Aug 2013
    Location
    Central NI
    Posts
    4,324
    I have a solid as Shaper up here that would be a good match for that chunk of solid...
    Micky Duck likes this.
    Dan M

  7. #7
    Member
    Join Date
    Dec 2017
    Location
    Scotland
    Posts
    106
    @homebrew.357 good work! I know where you're coming from. I've been turning some 130mm dia EN19T into a De Haas falling block action with my lathe and a small milling attachment.
    Moa Hunter likes this.

  8. #8
    Banned
    Join Date
    Mar 2016
    Location
    auckland
    Posts
    2,453
    Do you put an attachment on the toolbed and the cutter in the chuck for millinh
    takbok likes this.

  9. #9
    Member
    Join Date
    Dec 2017
    Location
    Scotland
    Posts
    106
    I put 2x tapped holes on my compound slide, and attach my milling slide to this via an angle block. I have an ER40 collet chuck that I use to hold various end mills. Always takes ages to set up!

  10. #10
    Banned
    Join Date
    Mar 2016
    Location
    auckland
    Posts
    2,453
    Obviously beyond my grasp but very interesting
    takbok likes this.

  11. #11
    I hunt, therefore I am.
    Join Date
    Sep 2019
    Location
    Tai Tokerau
    Posts
    4,431
    The other way is if you have the swing is either grab the ends of the round in the jaws, or attach to faceplate (bolt, weld, whatever)and flat it as a facing operation.
    Gruff, Moa Hunter and RUMPY like this.
    Quote Originally Posted by 308
    not smart enough to be useful
    Diligentia Vis Celeritas
    Life Advice

  12. #12
    Banned
    Join Date
    Mar 2016
    Location
    auckland
    Posts
    2,453
    Yes, presuming you don't need to flat the whole round you could part off a piece and flat it as mimms descibed
    RUMPY likes this.

  13. #13
    Member
    Join Date
    Jan 2015
    Location
    Waikato
    Posts
    1,504
    Quote Originally Posted by stevodog View Post
    Obviously beyond my grasp but very interesting
    Me too...obviously these guys don't have 4" grinders
    tetawa, Micky Duck and stevodog like this.

  14. #14
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    2,657
    Quote Originally Posted by homebrew.357 View Post
    I know want I need but will have wait till I win lotto, and need a bigger shed, in the mean time I`m making heaps of swarf and yes have 14 sheets of plans for this Remington rolling block rifle with grove improvements. That means lever breech opening, set triggers, pistol grip, I sold a guy a 45-70 barrel who had made the action and he said do you want the plans, I thought rolled up printed plans so yer , sent me a P D F file with all the plans. So had them all printed out now have something to do. , as well as making barrels, it`s all go.
    Gidday - are you going to do the Gove lever - I've never seen one in the flesh, any chance you could post up a drawing of the finished result??

  15. #15
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    3,072
    I can see that you have already cut two flats out of that round piece . You are halfway there !;-)
