Thread: VTP action core stock build

First up big props to me ol mate @Freezer for for all the advice on products and techniques, also for the inspiration to have a crack at it with his successful model 7 style howa mini stock.
I contacted Aiden at VTP and ordered a Howa mini action core.
I then picked up some P.E foam core from a company in Christchurch for the princely sum of $10.
I ordered resin, f/glass cloth and carbon fiber tape from NZ fiberglass supplies.
I wanted a stock with a longer L.O.P and a more vertical pistol grip to suit my sasquatche hands.

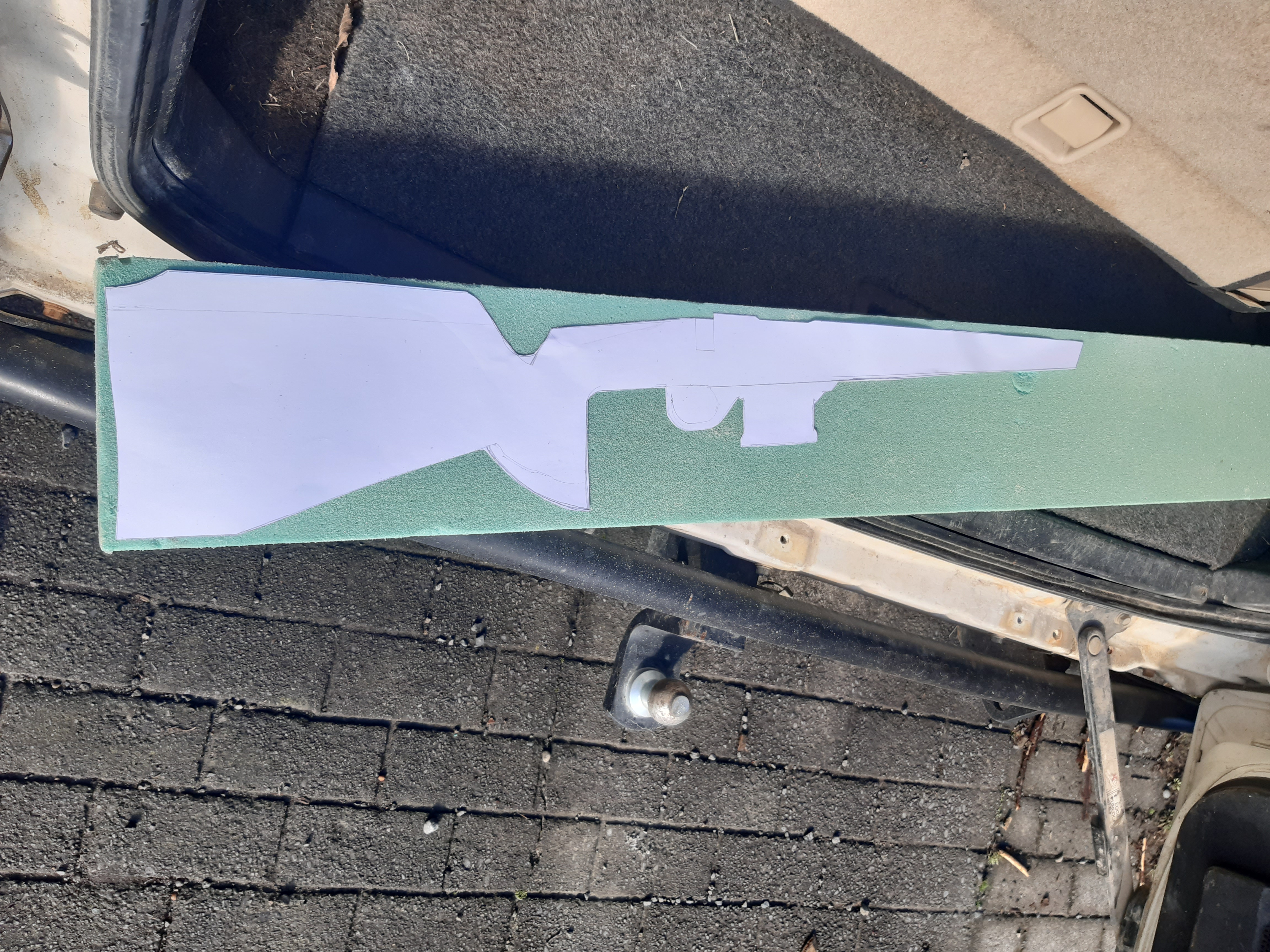

Here's a pic of my concept template.

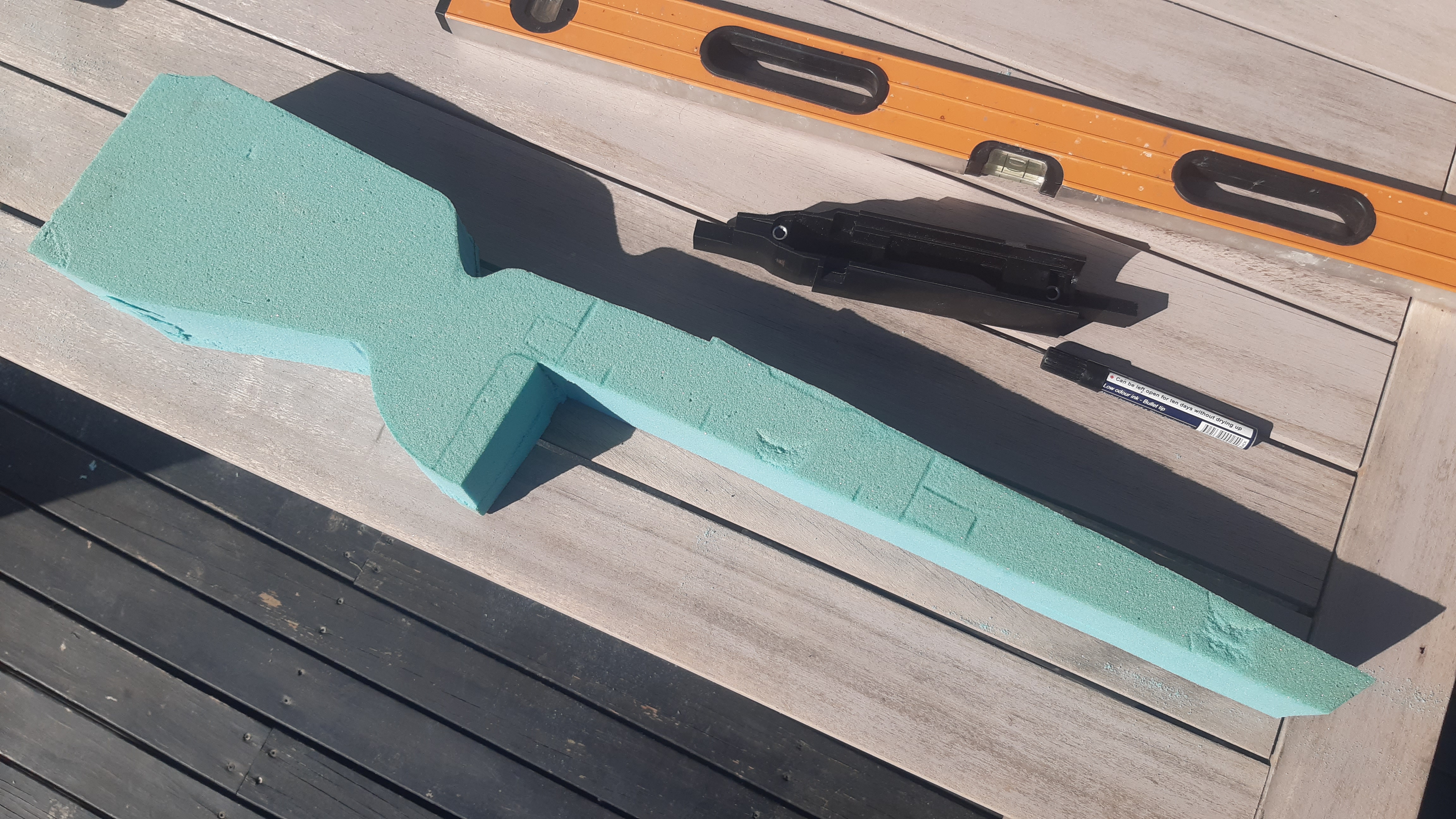

Next up was cutting out the rough shape with a bandsaw and a lot of green dust.

I started shaping with a rasp and 80grit sand paper, in retrospect it would have been easier glueing the fore and butt to the action core first as i cocked up the fore and it was a little crooked when i glued it on, luckily there was enough meat in it to true it up.

I also tweaked my original design of the comb somewhat as it was ridiculously high.

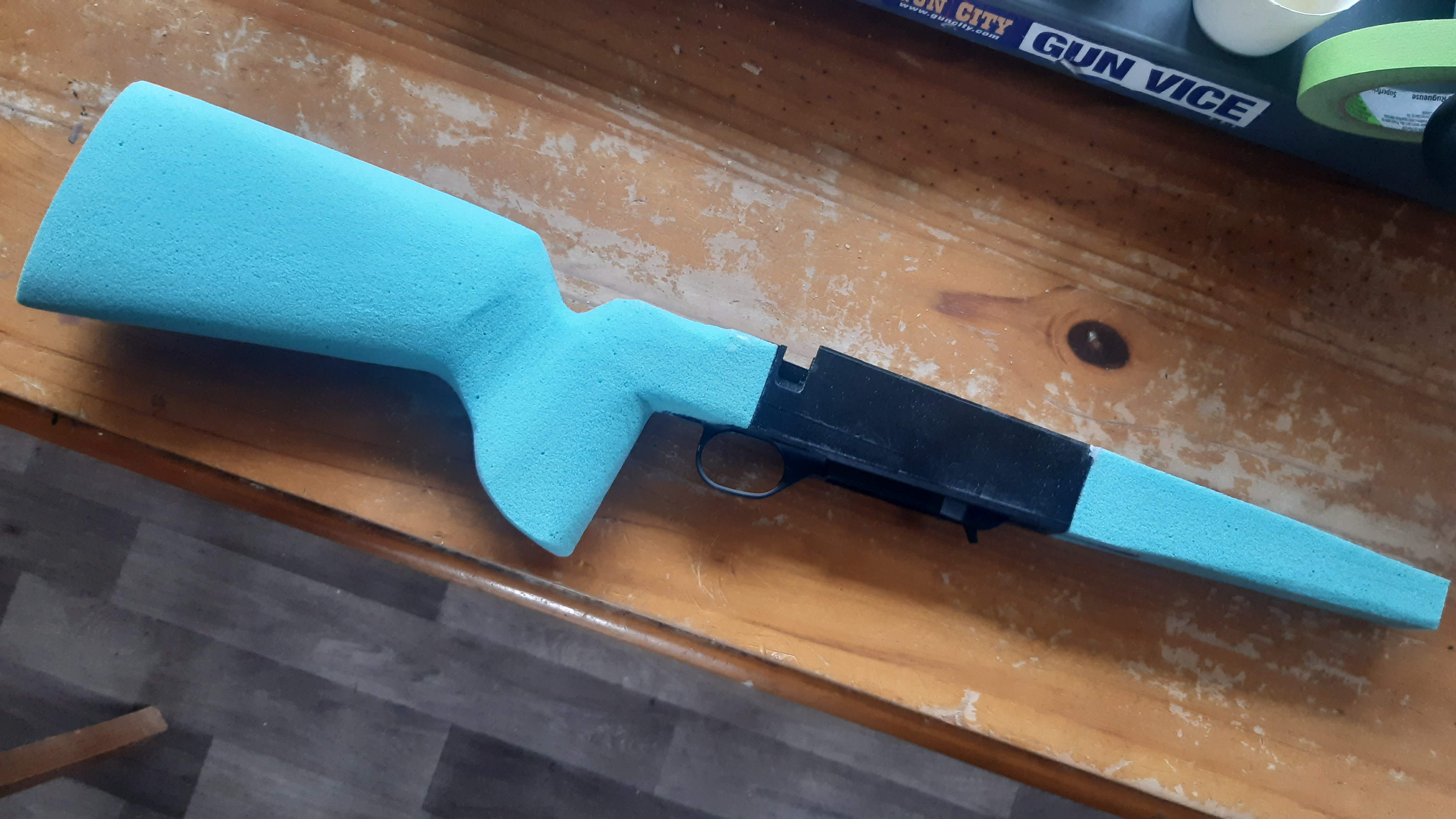

Here is where I'm currently up to.
I still need to tweak the wrist, palm swell and shape the fore. I also need to cut out the barrel channel.
Once all that is done i will seal all the foam with lightweight body filler then once it's smoothed out it'll be glassing time.

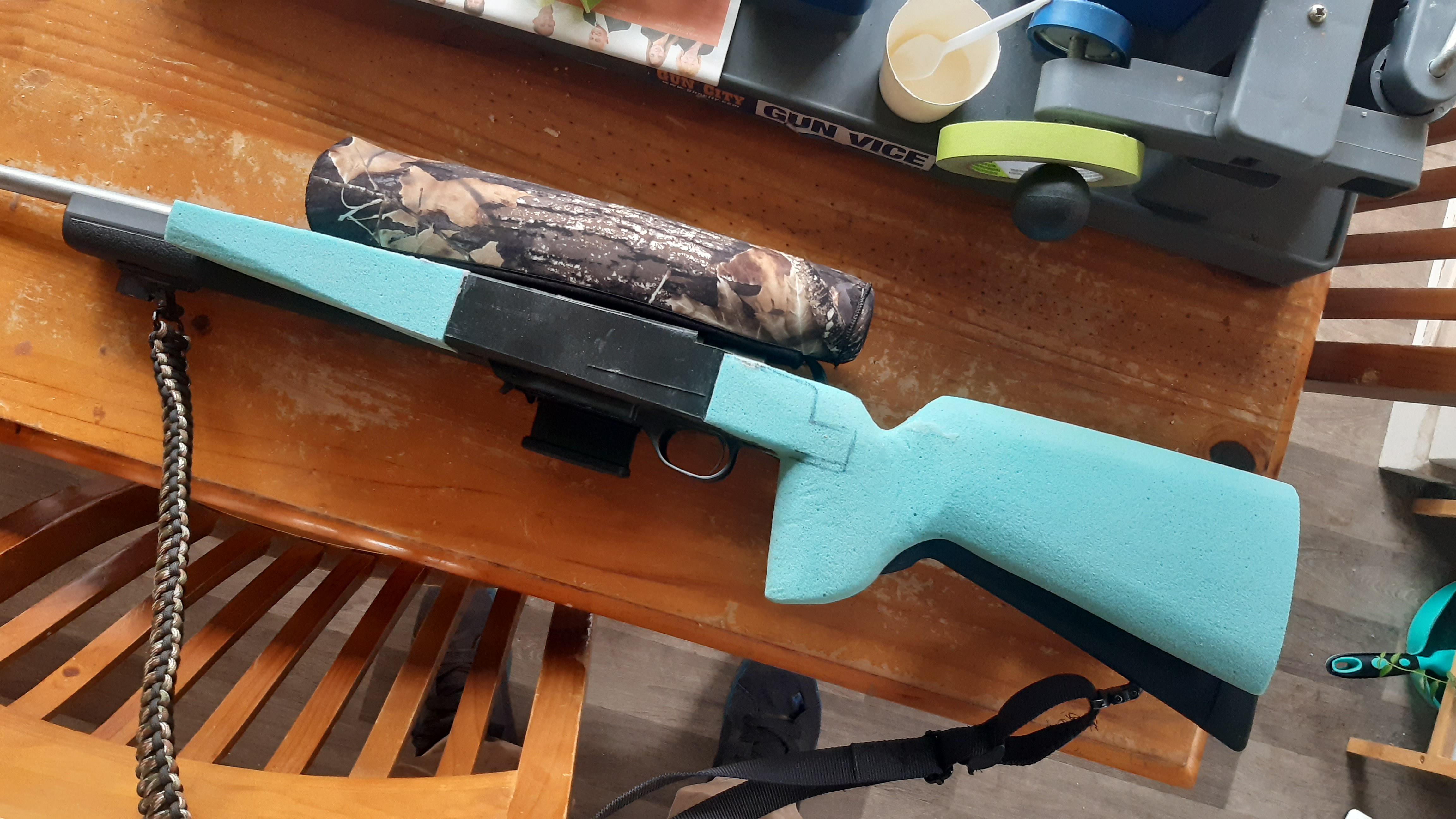

Here it is sitting on top of the factory stock for size comparison

looking forward to see how this comes out mate!

Probably a dumb question but would the VTP part fit a Jefferson outdoors hinged floorplate @dannyb?

I'm watching with interest also btw

Originally Posted by Preacher

Probably a dumb question but would the VTP part fit a Jefferson outdoors hinged floorplate @dannyb?

I'm watching with interest also btw

Well it fits the factory bottom metal so I would think so

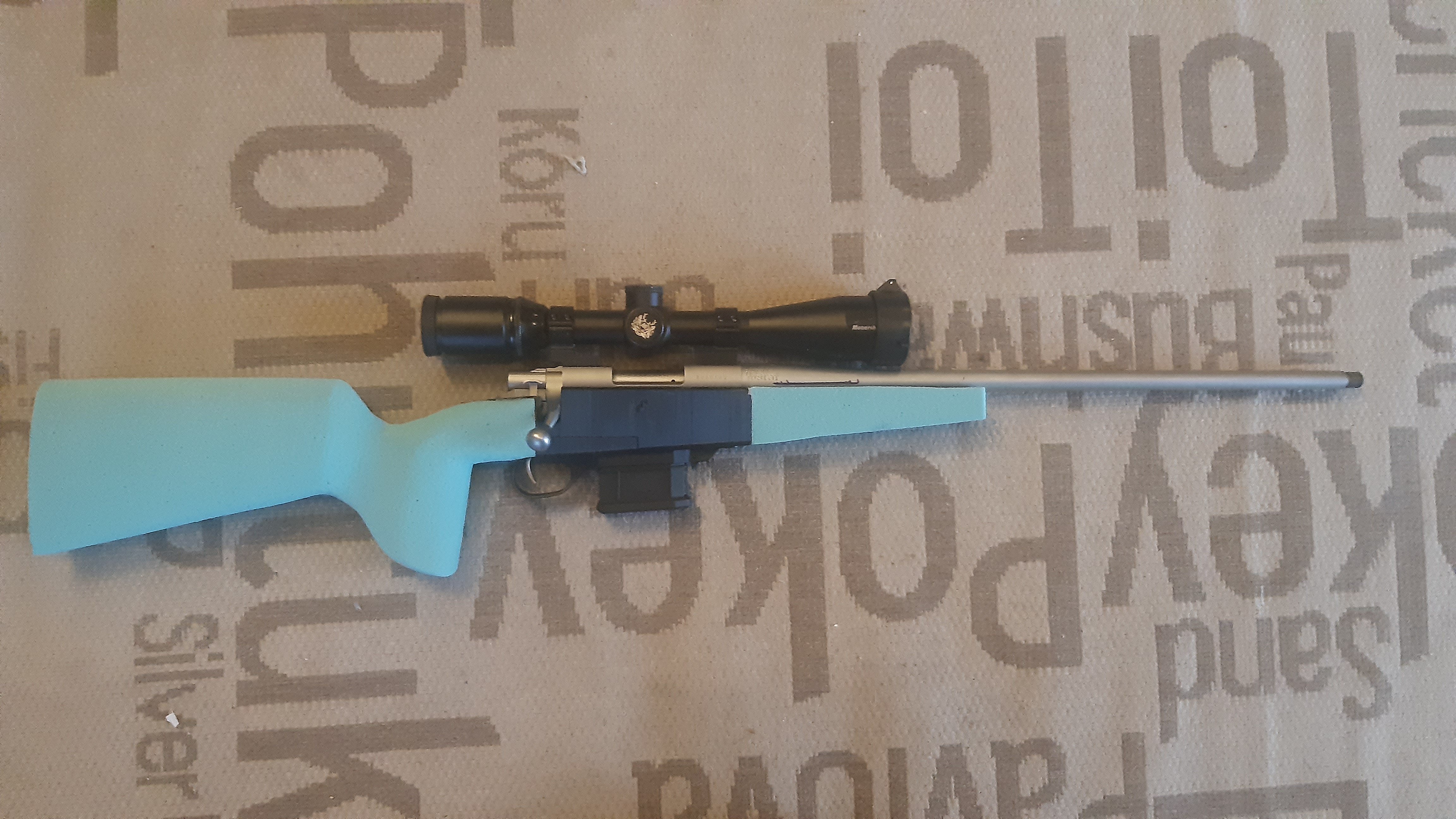

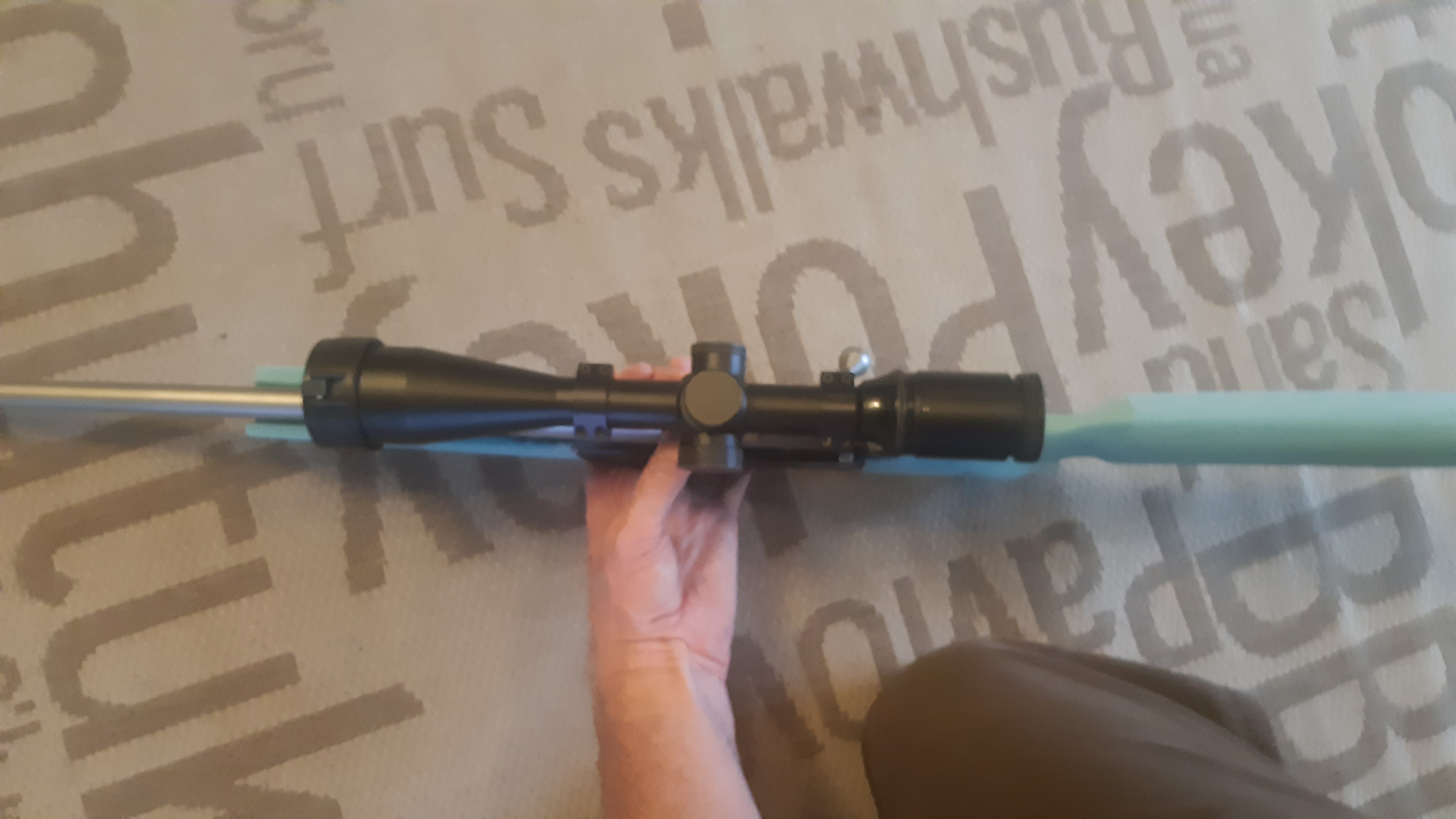

More progress today.
I spent some more time shaping the comb, the wrist and palm swell/pistolgrip areas.
I also did the barrel channel, I'm finally happy with everything from the action back it's a really good fit for me and eye sits perfect for scope relief.
I need to build up a little bit on one side of the fore before I do any shaping in the fore which I'll do with lightweight auto filler.
Then once I'm completely happy I'll seal all the foam with a thin coat of lightweight filler then it's glassing/carbon time.
Really happy with how it's all coming together and other than the bandsaw it's all been done with a rasp and sand paper.

Kinda why I thought it would be a dumb question. But it's making me think moderately expensive and time consuming thoughts so I don't see harm in asking!

Originally Posted by Preacher

Kinda why I thought it would be a dumb question. But it's making me think moderately expensive and time consuming thoughts so I don't see harm in asking!

No dumb questions bud, I'm pestering @Freezer multiple times a day the poor bugger

so why did you make the forend so short????
being so light,I would have thought you would have made it right out to the suppressor...

also...consider poking two bits of tube through butt section so you can attach the rear of sling on the side rather than the bottom like normal.
it make the rifle sit flatter if across back which avoids the jutty out bits digging in the back etc...

Originally Posted by Micky Duck

so why did you make the forend so short????
being so light,I would have thought you would have made it right out to the suppressor...

A couple reasons, it's unnecessarily long on the mini stock and I cocked it up a bit and that was as long as I could keep it when I trued it up.
I like it short, I could lengthen it easily by glueing a bit of foam on but I don't think it will be necessary.

Well @dannyb prepare for pestering as the build progresses

Having a few teething issues with the inlet core at first I couldn't close the bolt as the handle fouled on the inlet....easy I'll dremel the bit its fouling on......should've clicked the action screws were out by about 2mm and the tang wasn't fitting flush at the back of the inlet by 2mm....bingo the shelf the recoil lug beds against is 2mm too far forward.
Will have a yarn to a mate of mine to see if he can mill it back a couple mm cause I think trying to dremel it will end up a mess.
Will talk to Aiden at VTP and let him know as the core is still a prototype hopefully I can mod mine to work otherwise it'll be start from scratch again.....

Originally Posted by Preacher

Well @dannyb prepare for pestering as the build progresses

@Preacher, hold off ordering the action inlet, I have judt spent the morning dremelling clearance for various parts of the inlet as it was binding and sitting high (the tang was way too high), also the pillers and action lug aren't quite right, I could with a few more hours get it right ish but that eould also add a lot more finishing to mske it tidy on top of a ull glass bedding (was likely gonna bed it anyway). But yeah the idea of the printed inlet was that I wouldn't have to spend hours geting everything to line up and basically inlet it myself.
I will talk to Aiden on Monday and see if we can get another prototype sorted. It's a little frustrating butvat the same time I've learnt heaps about shaping and design so not a complete wasted effort. I've only wasted a bit of time and some foam at this stage which is cheap as chips but it seems futile to throw any more time and resources at this version.
I will definitely be able to smash out mk2 much quicker once the inlet core prototype is sorted.
